Interior ICP 62

2-way recessed ceiling speaker

  • Excellent sound, even in surroundings that are not ideal in acoustic terms
  • High-quality crossover with 3-stage level adjustment for the treble range
  • 35° swivelling 19 mm PET dome tweeter for perfect adjustment to any application
  • Specially coated membranes, also suitable for use in wet rooms
  • 160 mm hairline polypropylene subwoofer with long excursion rubber surround for maximum deflection

2-way recessed ceiling speaker

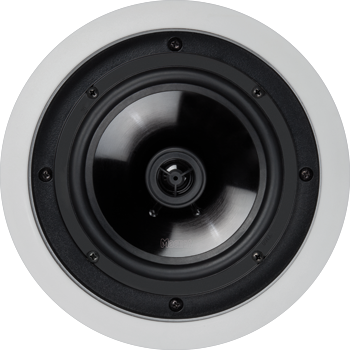

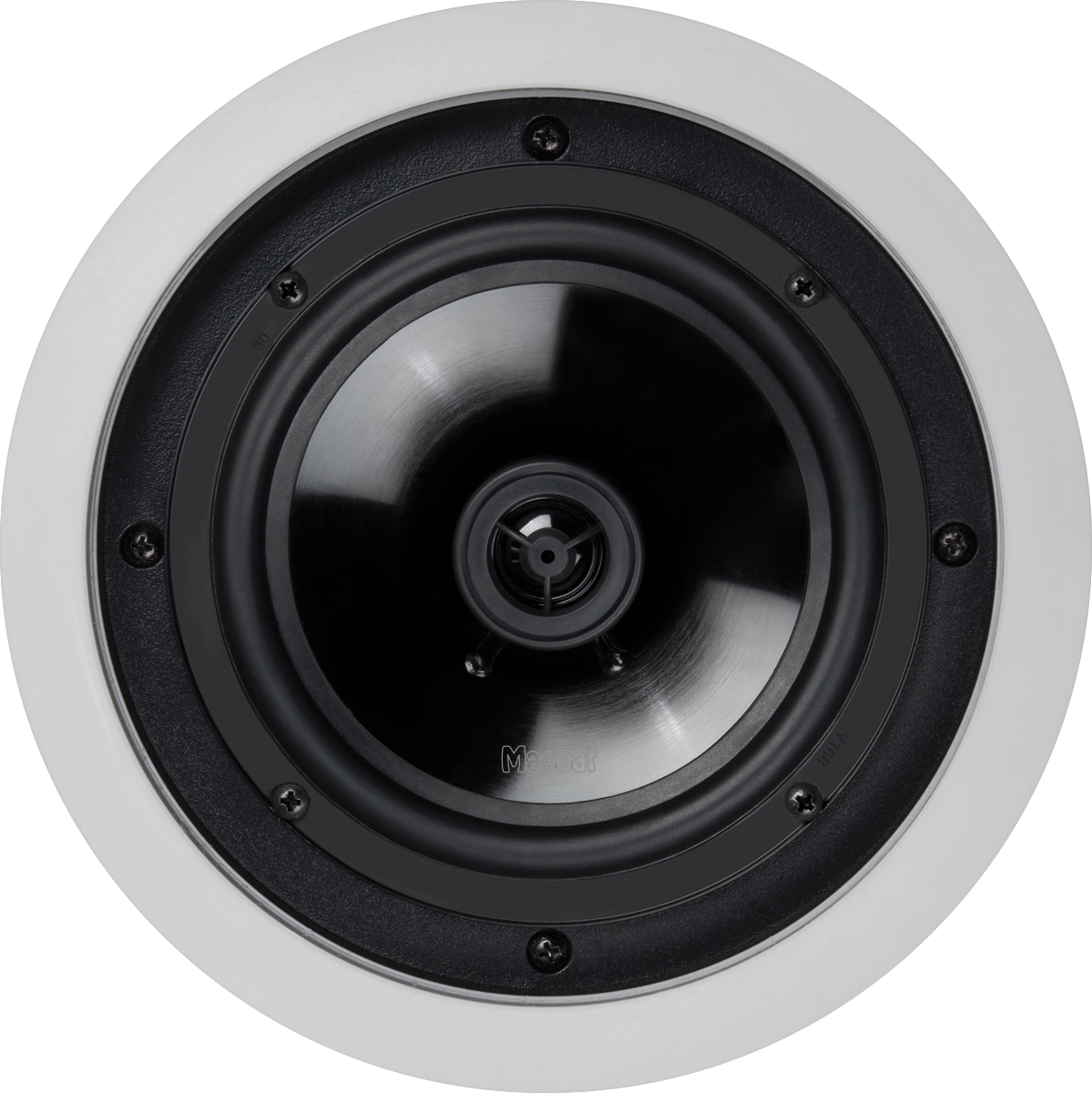

The ICP 62 is a medium-sized recessed ceiling speaker and belongs to the Interior Performance series. Equipped with a 19 mm tweeter than can be pivoted by 35° in all directions, the in-ceiling system can also be adapted to very custom installation scenarios. As a result, most installation situations can be handled successfully.

Thanks to the coated surface of the cone and high-quality components, installation in humid areas such as in bathroom or near a swimming pool is no problem. In addition, installation with the help of the rugged clamping mechanism is easy.

High flexibility thanks to swivel tweeter

The use of flush-fitting speakers is generally subject to very individual requirements, which is why these products have to offer a high degree of flexibility with regard to to installation. The models fitted with a tweeter can be swivelled 35° in any direction, for example. Thanks to this "swivel technology", most installation situations can be handled successfully.

Suitable for wet rooms

Thanks to the coated surface of the cone and high-quality components, installation in humid areas such as in bathroom or near a swimming pool is no problem. In addition, installation with the help of the rugged clamping mechanism is easy.

Technical specifications


Principle
  • 2-way in-wall/in-ceiling loudspeaker
Drivers
  • 19 mm tweeter
  • 160 mm woofer
Power Handling (RMS/Max.)
  • 70 / 120 watts
Sensitivity (2.8V/1m)
  • 90 dB
Impedance
  • 8 Ohms
Frequency Response
  • 36 – 24000 Hz
Crossover Frequencies
  • 4.000 Hz
Recommended Amplifier Output
  • 20 - 140 Watts
Outer Dimensions Ø
  • 233 mm
Cutting Out Ø
  • 198 mm
Mounting depth
  • 88 mm
Weight
  • 1.0 kg

Highlights


Principle
  • 2-way in-wall/in-ceiling loudspeaker
Highlights
  • Moisture-proof speaker system, suitable for use in humid rooms (bathroom)
  • Special clamping mechanism for easy installation
  • In-wall/in-ceiling loudspeaker
Crossover

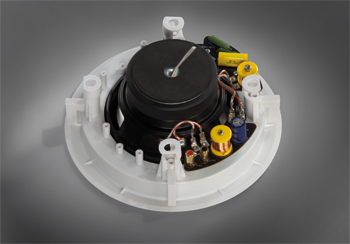

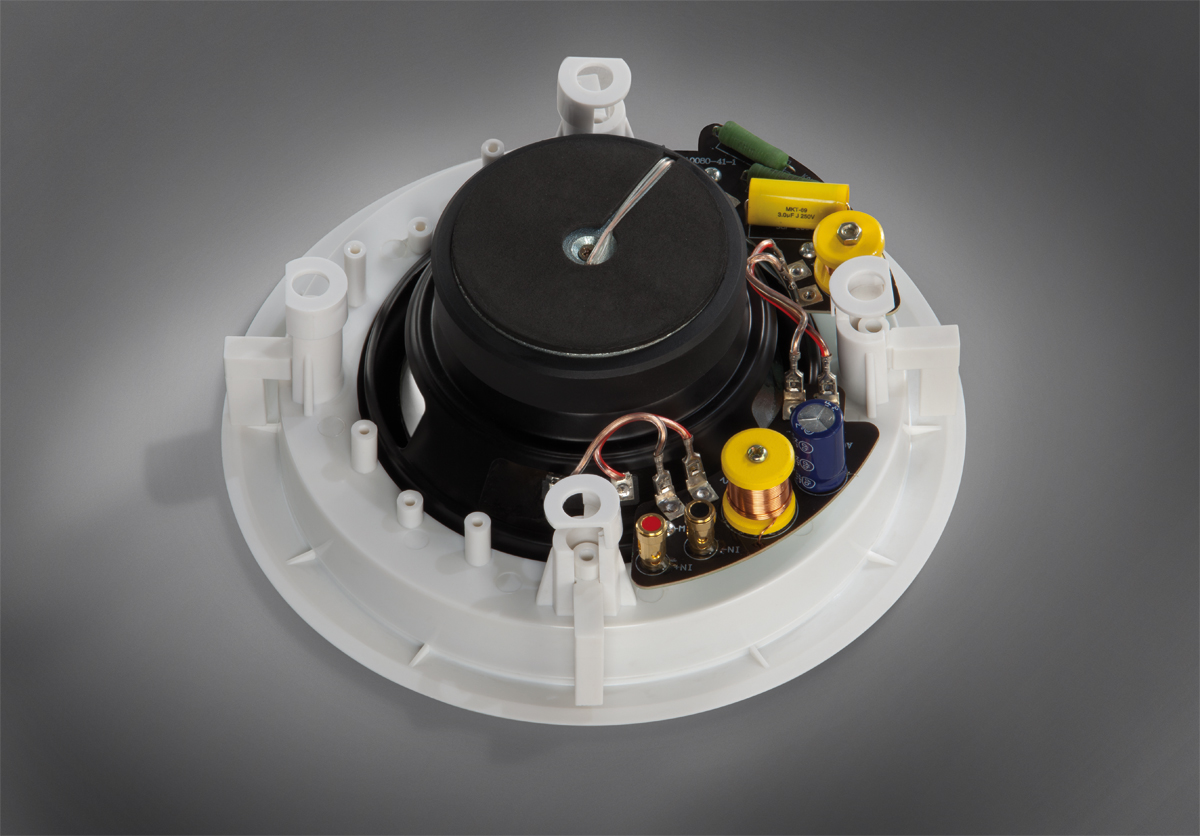

  • Crossover with high-quality components and 3 settings for the tweeter level
Connections
  • Gold-plated push terminal
Loudspeaker drivers
  • PET dome tweeter
  • Hairline polypropylene woofer cone
  • Tweeter with Swivel technology (can be turned by 35°)
  • Long-throw rubber surround for maximum excursion

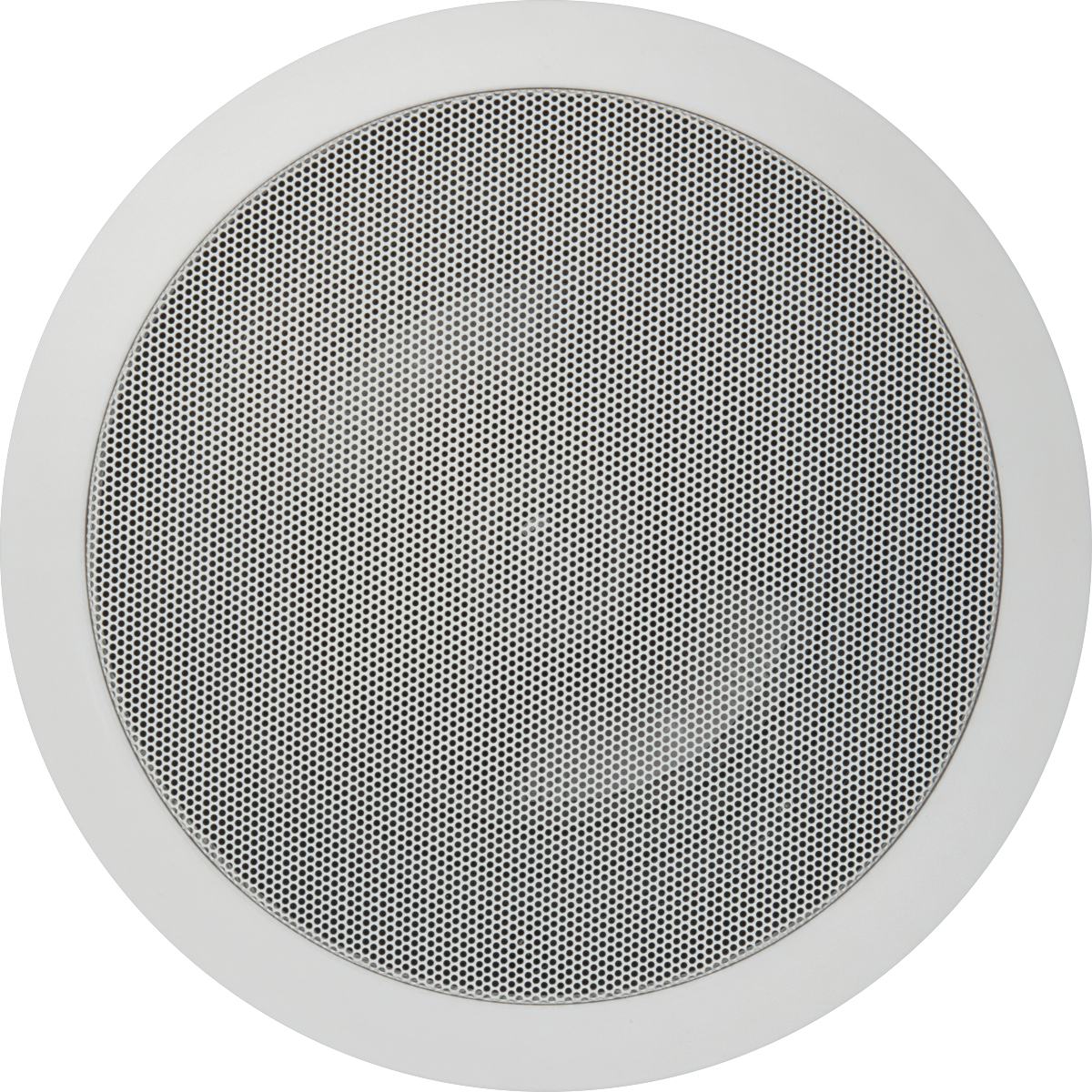

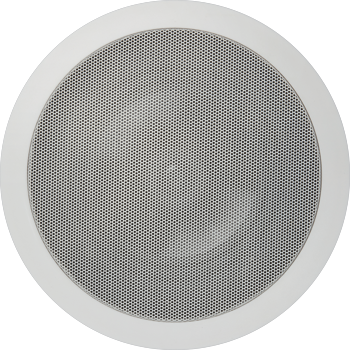

  • Solid protection grille
Cabinet surface
  • white
