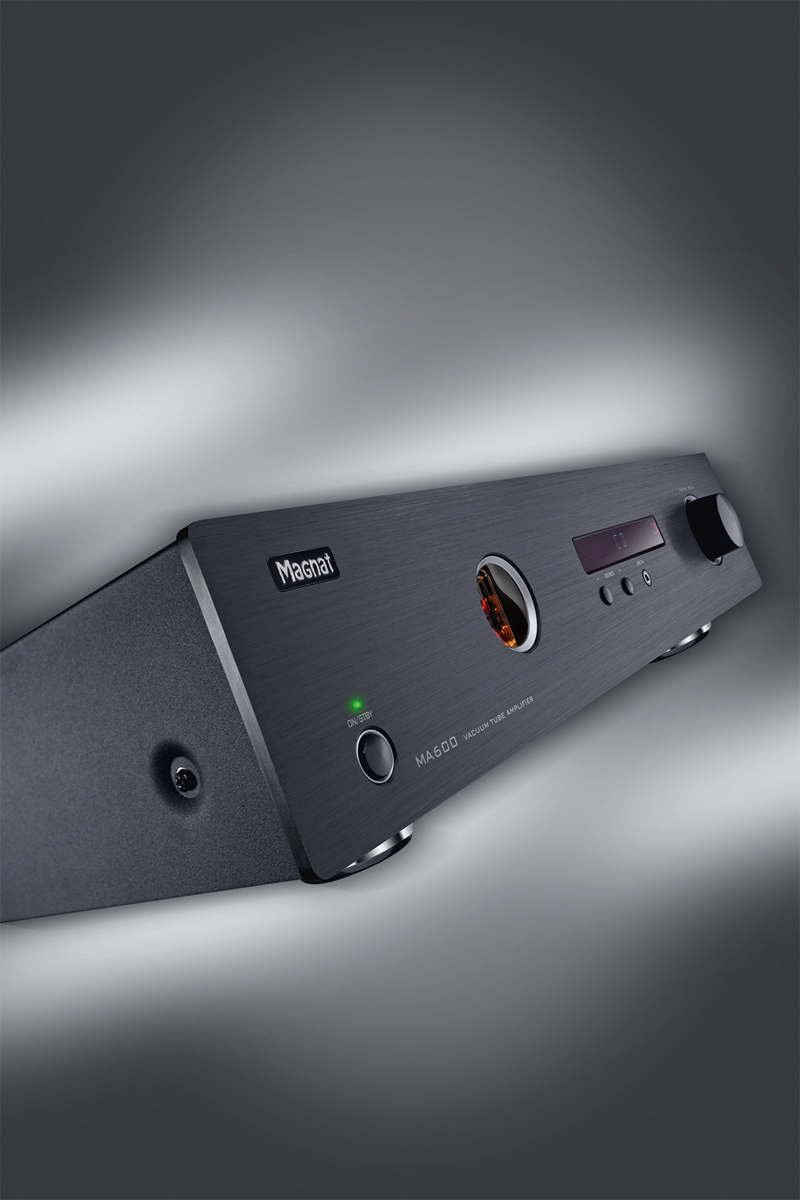

MA 600

High-End Stereo Valve Power Amplifier with Hybrid Technology

With our high-end hybrid power amplifier, we bridge the gap between maximum power capacity and audiophile standard acoustic performance. The semi-conductor power amp guarantees maximum stability as well as huge output power. At the same time, with the tube pre-amp, the Magnat engineers deliver a mature, authentic sound for the audiophile. Thanks to strict component selection criteria, and the use of exclusive materials, the MA 600 meets the most challenging demands.

High-End Stereo Valve Power Amplifier with Hybrid Technology

The beating heart of the MA 600 – the tube pre-amp


While the separately built semi-conductor power amp ensures maximum power, the pre-amp is responsible for the particularly acoustically-pleasing, natural sound. The extremely low noise tube amplifier is equipped with an ECC 88 tube, naturally hand-picked by us, and with 60 hours running-in time on the clock. High quality tube sockets ensure maximum signal stability. The high audiophile standards are obvious, starting with the inputs. The digital coaxial and optical inputs and the USB port support sampling rates up to 192 kHz and sampling depth of 24 Bit. Anyone who wants to connect via Bluetooth can rely on the aptx standard. Thanks to this innovative protocol, lossless, wireless transmission is now possible to a great extent. High quality Burr/Brown converters then handle the digital to analogue conversion.

Exclusivity & Performance


Both the tube pre-amp and the semi-conductor power amp are located in a solid metal housing for maximum power output. Output of 70 watt sine power (4 Ohm) is achieved with a high performance power amplifier chip per channel. The sophisticated power supply unit with separately stabilised voltages for the individual circuits, and a very generously sized toroidal transfomer ensure extremely stable and clean power supply. In addition, high capacity smoothing capacitors easily handle any peaks in voltage. Despite its enormous output, the MA 600 uses very little energy when powered off due to a separate power supply for standby mode. The components selected for the inner workings are rounded off by high quality materials and outstanding quality of workmanship on the housing. Solid aluminium controls are recessed into the 5mm thick front panel. There is also 3.5 mm audio input for portable devices and a headphone output with 6.3 mm jack. An easy to read alpha-numeric display helps simple, menu-assisted operation. Naturally, a high quality remote control covering all functions is included.

Technical specifications


Highlights


Serienmerkmale Elektronik_EN
  • High-quality D/A converter
  • Low-noise preamplifier tube
  • Solid aluminium front panel
  • MM Phono Pre-stage
  • Solid aluminium control elements
