Technical specifications
Princíp
- 3-cestný, bass reflex
Vybavenie
- 260 mm basový menič
- 1 x 5.25“ midrange
- 1 x 1” horn-dome tweeters
Únosnosť (RMS/Max.)
Citlivosť (2.8V/1m)
- 92,5 dB
Impedancia
- 4 – 8 Ohm
Frekvenčný rozsah
- 22 – 32000 Hz
Frekvencie výhybky
- 750 Hz, 3800 Hz
Odporúčaný výstup zosilňovača
- 30 - 300 W
Rozmery (ŠxVxH)
- 380 mm x 790 mm x 280 mm
Hmotnosť
- 20 Kg
Highlights
Zvýraznenia
- Deep and precise bass response thanks to the 26 cm high-power woofer and paper cone
- Solid MDF enclosure with 5° sloping surface for phase-optimized sound dispersion
- Single-compression horn tweeter with 25 mm fabric dome for excellent dynamics and a natural sound pattern
- Powerful midrange driver with a lightweight paper cone and high degree of efficiency
- Classic speaker technology in a large enclosure that delivers a powerful and lively sound with a rich bass line
- Sound-optimized for rock, urban and impulsive music styles
Basový/stredový reproduktor
- Powerful midrange driver with a lightweight paper cone and high degree of efficiency
- Large hardened paper cone and PA fabric mount
- 26 cm high-power woofer with powerful Klippel®-optimized magnetic drive
Výhybka
- High-quality crossover with 2nd and 3rd order filters and additional phase correction for a balanced sound pattern and maximum load-handling capacity.

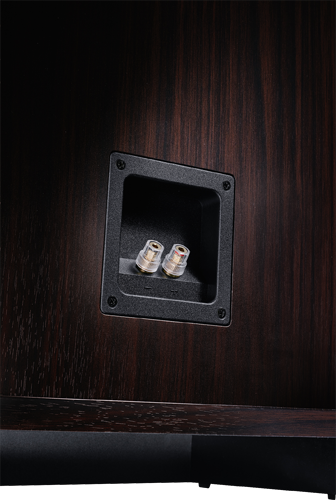

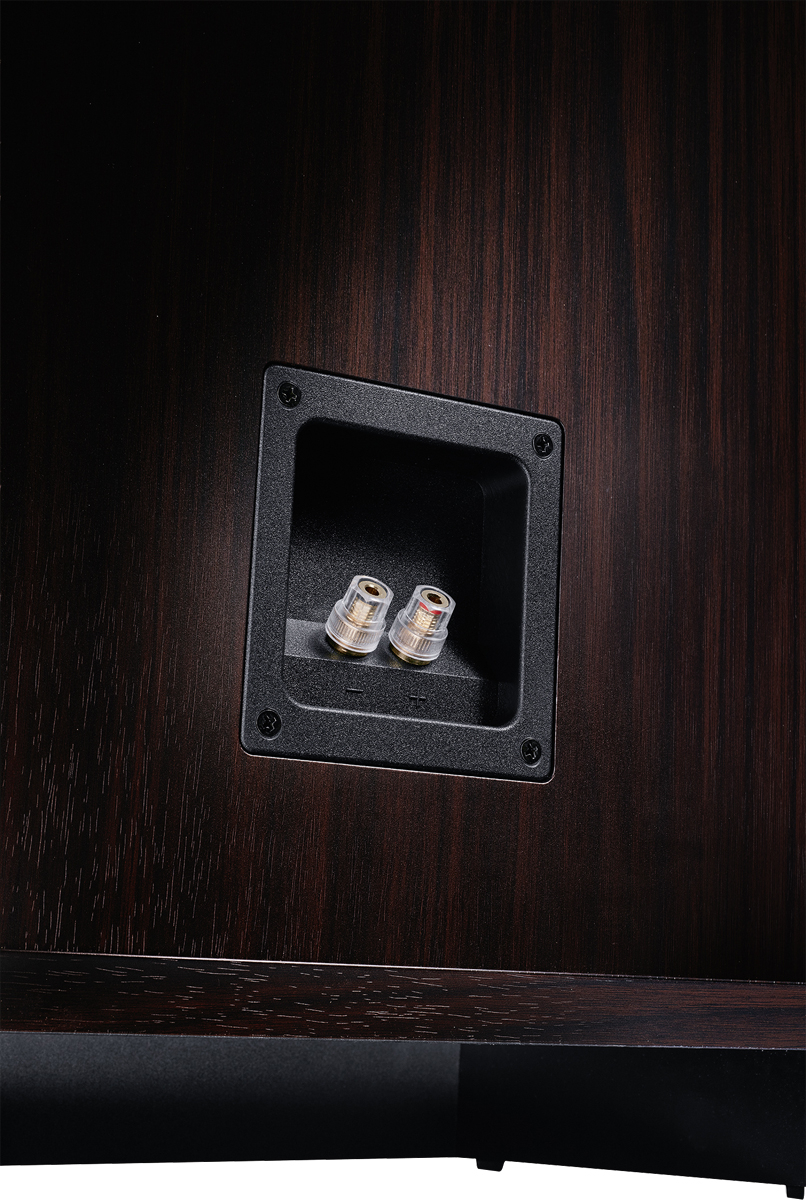

- Sturdy connecting terminal with insulated screw terminals for large cable cross-sections
Telo reproduktoru
- Solid MDF enclosure with two large, flow-optimized reflex tubes in a front-firing configuration
