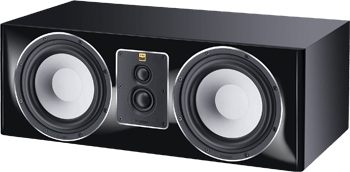

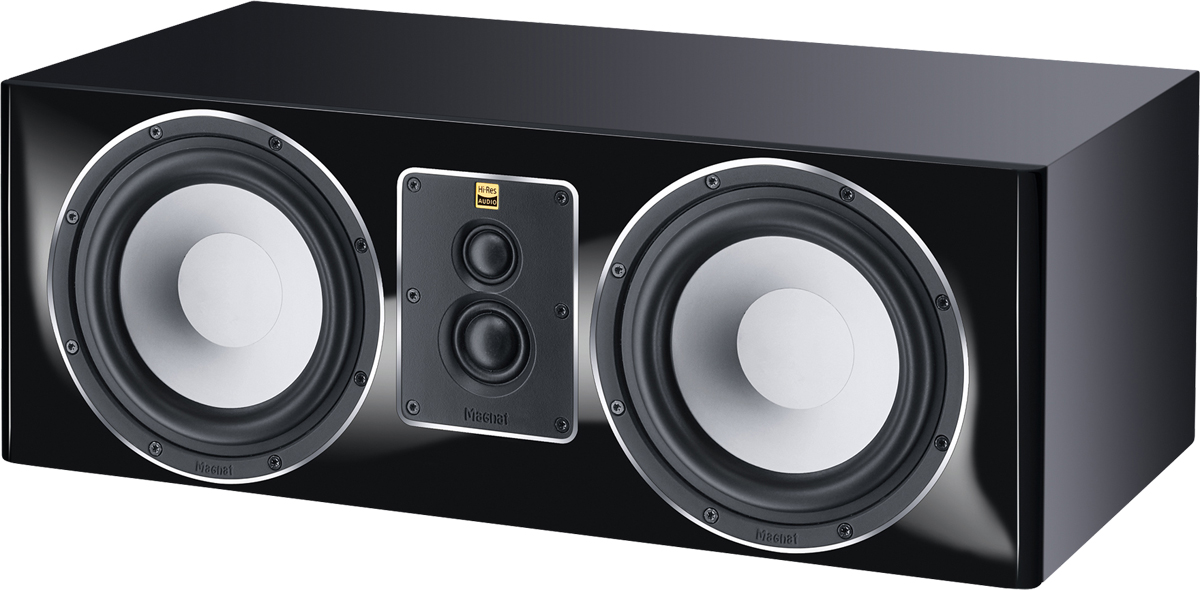

Signature Center 73
3-way center speaker
- Hi-Res certified dual tweeter module with two fmax domes
- 3-way center speaker with bass reflex technology
- Bass-midrange driver with ceramic/aluminum cone
- Optimum sound dispersion for use in a home cinema system
3-way center speaker
No home cinema is complete without a good center speaker, because this is where most of the acoustic action takes place. The Signature Center 73 naturally features an identical chassis and perfect tonal coordination to ensure a homogeneous all-round sound. The Hi-Res dual tweeter module in the center speaker is flanked by two 170 mm bass-midrange drivers, making it a true 3-way system. Like all of the speakers in the Signature 700 series, the Center 73 also features a bass reflex port in an Airflex configuration to prevent flow noise.
Technical specifications
Configuración
- Bassreflex de 3 vías, doble bajo
Componentes
- 2 x 170 mm altavoz de graves/medios
- Súper altavoz de agudos de 20 mm
- 1.2" dome-tweeter
Resistencia (RMS/Max.)
- 120 / 190 Watts
Rendimiento (1 vatio/1 m)
- 91 dB
Impedancia
- 4 – 8 Ohm
Gama de frecuencias
- 31 - 54000 Hz
Frecuencia de separación
- 2700 Hz/17000 Hz
Potencia recomendada del amplificador
- > 20 Watt
Dimensiones (an x al x pr)
- Cabinet: 520 x 200 x 275 mm
Peso
- 10 kg
Tinta
- Front: Piano White / Cabinet: white satin
- Front: Piano black / Cabinet: black satin
Highlights
Configuración
- Bassreflex de 3 vías, doble bajo
Tweeter & Super-Tweeter
- Newly developed high-res tweeter module with two fmax dome tweeters 1.2″ dome tweeter with extra-thick surround for low frequency coupling to the midrange Additional 0.75″ super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
- Front panel secured by six screws, special sound guides for optimum dispersion properties
- Powerful neodymium ring magnet systems for best dynamics
Altavoz de bajos/medios
- Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
- Sophisticated voice coil ventilation for a particularly high degree of resilience
- Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
- Diseño general optimizado mediante Klippel®
Crossover
- Crossover optimizado para amplitud y fase con filtros acústicos de 24 dB y componentes de alta calidad
- Amplia zona de conexión de bi-cableado con terminales de tornillo de grandes dimensiones y contactos chapados en oro
Caja
- Cubierta protectora desmontable con óptima transmisividad de sonido y cierres magnéticos ocultos
- Two-Airflex ports with rounded reflex opening for reducing wind noises
- Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design
- High-gloss lacquered baffle combined with noble satin matte lacquer (body)
- Decoupling silicone feet included
Tinta
- Front: Piano White / Cabinet: white satin
- Front: Piano black / Cabinet: black satin
