Back to series Transpuls

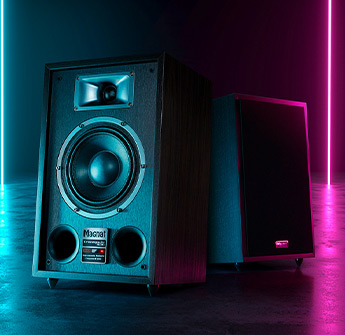

Transpuls 800A

Active 2-way speaker system with Bluetooth, HDMI, digital and analog inputs

  • Active speaker system with a wide variety of connections
  • Bluetooth aptX for uncomplicated use with smartphones and tablets
  • Powerful class D amplifier module with 2 x 120 watts RMS power
  • HDMI input for direct connection to a TV set
  • Switchable phono amplifier for MM systems
  • Sturdy retro housing

Active 2-way speaker system with Bluetooth, HDMI, digital and analog inputs

In terms of acoustics, the Magnat Transpuls 800A has all of the rebellious genes of its big siblings. Thanks to the powerful integrated amplifier electronics with its 2 x 120 watt output and the wide range of connection options, the stereo speaker set becomes a fully-fledged hi-fi system that masters all facets of modern music sources.

Bluetooth connectivity allows the Transpuls to be connected to smartphones and tablets, while the HDMI input makes it the perfect addition to a TV set. What's more, the digital input also supports the playback of high-resolution audio. Of course, it can also handle analog signals as well and the RCA input with switchable phono stage will raise the heart rate of all vinyl fans, as it means they can finally provide their favorite source with the corresponding acoustic expertise complete with matching retro look.

Magnat Transpuls 800A – Compact, but not small

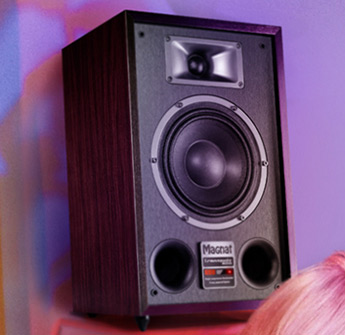

Measuring just 385 mm in height, 240 mm in width and 215 mm in depth, the Transpuls 800A will fit easily on any shelf. It should still be sturdy, however, because firstly the set weighs x.x kg and secondly, its dynamic capabilities require a robust installation location. The dark wood decor housing, as well as the baffle and removable black fabric cover should by no means be interpreted as attempts to be discreet. That's definitely not the character of the Transpuls 800A.

The precisely calculated geometry of the horn tweeter, which is a feature of the Transpuls series, delivers a brutal pulse fidelity. And the bass range is in no way inferior, because the 170 mm hardened paper cone with PA fabric mount also ensures a purely dynamic performance. In addition, there are also selected components in the crossover and sturdy connecting terminals to boot. The Transpuls may give the impression of a shelf speaker, but inside beats the rocky, musical heart of a fully-fledged hi-fi system.

Test reviews

What do trade magazines say about this product?

Technical specifications

Mains voltage
  • 100 – 240 V
  • Powered
Power Handling (RMS/Max.)
  • active
  • 6.5“ woofer-midrange
  • 1 x 1” horn-dome tweeters
Output power (RMS/Max.)
  • 2 x 60 / 2 x 120 Watt
  • 2 x 60 / 2 x 120 Watt
Frequency Response
  • 34 – 32000 Hz
Crossover Frequencies
  • 3.100 Hz
Dimensions (WxHxD)
  • 240 x 385 x 215 mm
  • Passive speaker: 6.5 kg


Horn Tweeter
  • 25 mm fabric dome with powerful neodymium drive for excellent dynamics and a natural sound pattern
  • Single-compression horn tweeter (SC-horn) with dispersion-optimized horn geometry

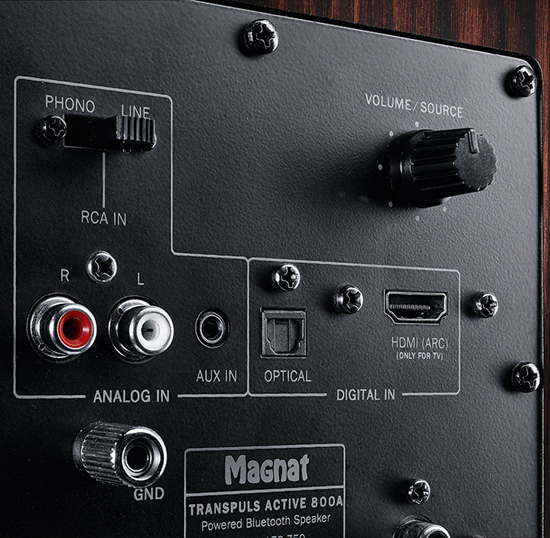

Amplifier & Connections
  • Bluetooth® input (version 5.0) with aptX Low Latency
  • HDMI® with ARC and CEC function (Speakers can be controlled via TV remote control)
  • Additional 3.5 mm analogue stereo input for connecting portable audio devices
  • LED status indicator at the speaker front
  • Complete control is ensured via the supplied remote control (incl. battery)
  • The left passive speaker is connected to the right active speaker via a supplied cable
  • Sampling rates of all digital inputs up to 24Bit/192kHz
  • Optical digital input for direct connection of digital audio devices (e. g. TV)
  • Low standby power consumption (<0.5 watts) with auto standby function
  • Analogue stereo input (Cinch R/L) with switchable phono preamplifier for direct connection of a record player with magnet system (MM)
  • Subwoofer output for connecting an external active subwoofer
  • Elaborated phase and amplitude optimized crossover with high-quality components
  • High-quality connecting terminal with solid, gold-plated and capsulated screw connectors
  • Resonance damping rubber pucks

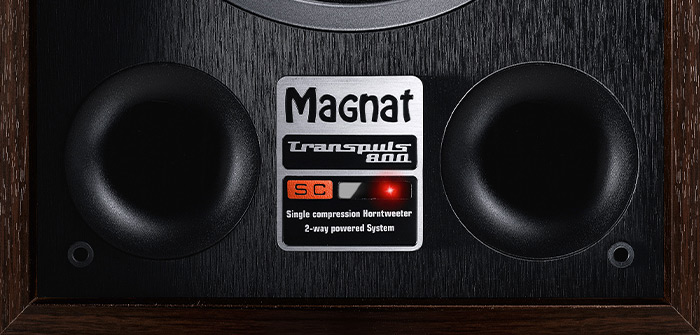

  • Solid MDF enclosure with two large, flow-optimized reflex tubes in a front-firing configuration
  • High-quality dark wood decor, baffle in contrast black
  • Removable cloth cover in retro design with a solid MDF frame
  • Two additional, higher rubber feet included. This allows a slightly tilted set-up for phase-optimised sound reproduction.
